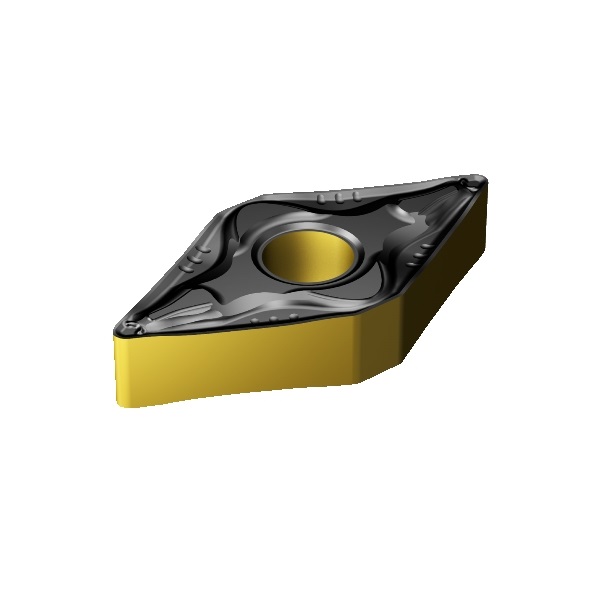

Sandvik DNMG 15 06 08-PF 4325
Sandvik Kesici Uç DNMG 15 06 08-PF 4325
Material classification level 1 (TMC1ISO): PK
Insert size and shape (CUTINTSIZESHAPE): DN1506
Inscribed circle diameter (IC): 12.7 mm
Insert shape code (SC): D
Cutting edge effective length (LE): 14.704 mm
Corner radius (RE): 0.794 mm
Wiper edge property (WEP): false
Hand (HAND): N
Grade (GRADE): 4325
Substrate (SUBSTRATE): HC
Coating (COATING): CVD Ti(C,N)+Al2O3+TiN
Insert thickness (S): 6.35 mm
Clearance angle major (AN): 0 deg
Weight of item (WT): 0.015 kg
Sensor embedded property (SEP): 0
Life cycle state (LCS): Released
Release pack id (RELEASEPACK): 13.2
